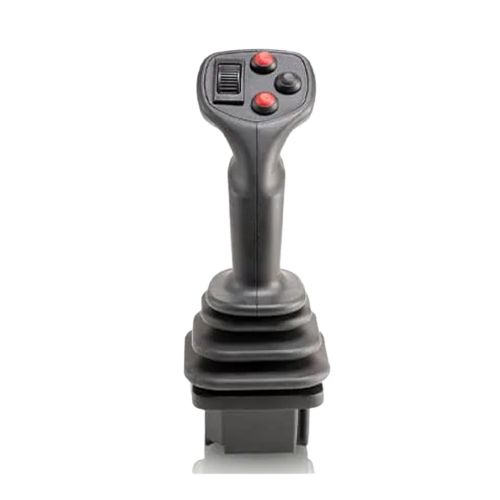

Metallux H10 · Hand Joystick
One Platform.
Built Around Your Application.
A modular multiaxial hand joystick combining robust mechanics, configurable operator controls and modern electronics for precise drive and function control in demanding machinery.
Modular by Design
Configure the control
around the machine.

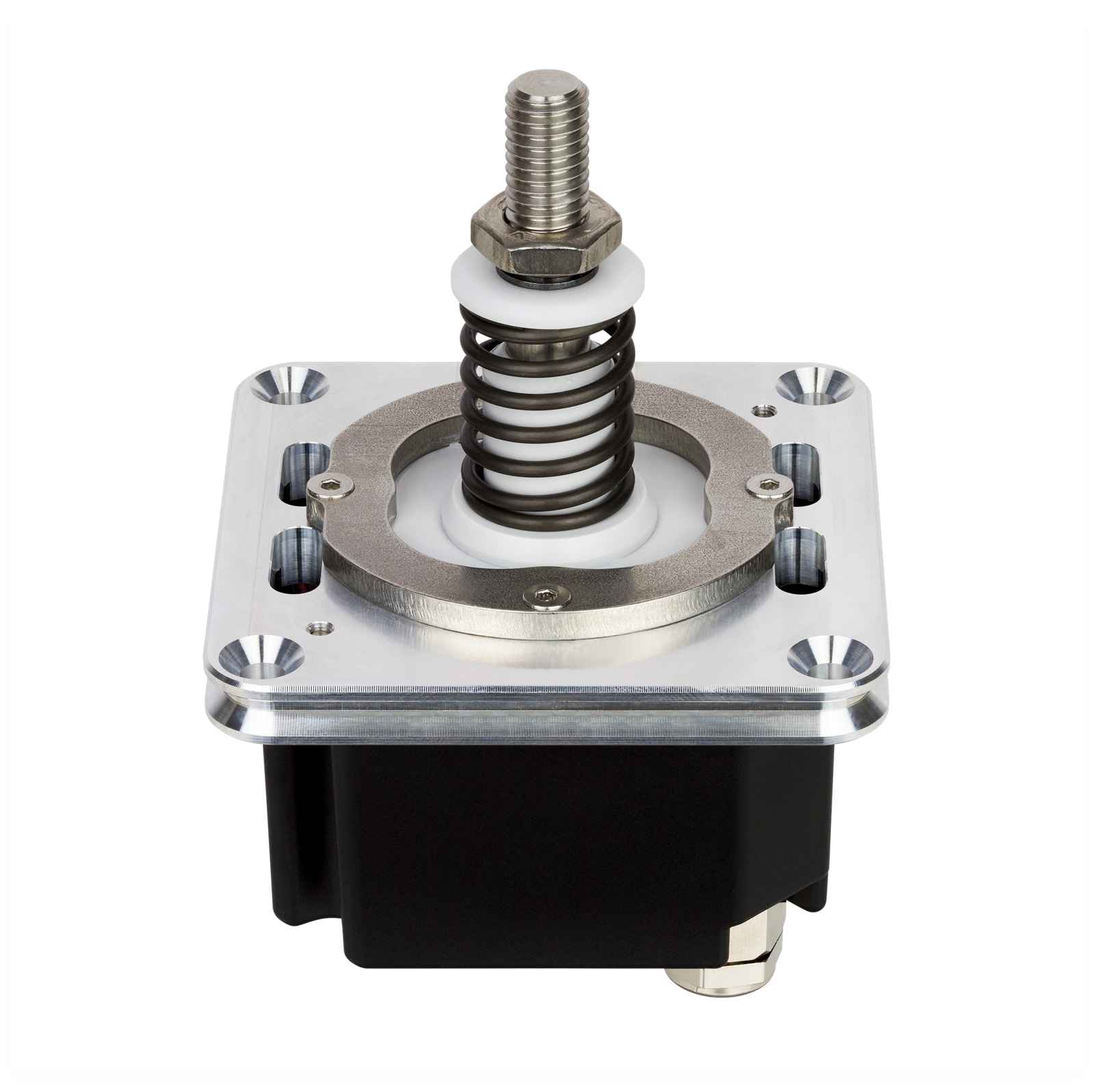

The H10 is built as a modular joystick platform, allowing the sensing technology, handle design and operator controls to be selected around the application.
Hall or potentiometer sensing can be combined with different handle concepts and a freely configurable thumb plate. Modern electronic variants support analog, SPI and CAN architectures, providing flexibility for both conventional and new machine platforms.
Configure the H10
Mechanical feel.
Operator functions. Electronics.
01
Modular Platform
Choose the joystick base and handle configuration around the required machine functions and operator environment.
02
Flexible Sensing
Hall or potentiometer sensing technologies allow the joystick platform to be configured around the electrical and application requirements.
03
Configure the Feel
Switching-path limitation, position detents and friction brake options allow the mechanical behaviour to be adapted to the application.
04
Modern Integration
Analog, SPI and CAN interface options provide a flexible path from conventional proportional controls to modern digital machine architectures.
More Than One Configuration
A platform designed to be adapted.
H10 provides a broad range of configuration options within one robust joystick architecture. Mechanical behaviour, sensing technology, operator functions and electrical interface can all be selected around the machine.
Sensing
Hall or potentiometer technology
Interfaces
Analog, SPI and CAN options
Supply
3.3 V and 5 V electronic variants
Handle
Configurable handle and thumb plate concepts
Controls
Application-specific operator elements
Mechanical & Electrical Options
Configure more than just the output signal.
Mechanical Behaviour
Switching-path limitation, position detents and friction brake options allow the joystick feel to be adapted to the machine function and operator requirements.
Operator Functions
Configure the thumb plate with application-specific control elements and add functions such as deadman control where required.
Machine Interface
Analog, SPI and CAN variants allow the H10 to integrate into conventional control electronics as well as modern distributed machine architectures.
Applications
Designed for demanding machine control.
H10 is designed for precise drive and function control across mobile machinery, industrial vehicles, cranes and other demanding operator environments.
Construction Machinery
Agricultural Machinery
Industrial Trucks
Aerial Work Platforms
Municipal Vehicles
Mining Vehicles
Crane Systems
Marine & Radio Applications
Selected Technical Data
Modular outside.
Engineered underneath.
Type
Multiaxial
Deflection
Max. ±28°
Sensing
Hall / Potentiometer
Supply
3.3 V / 5 V
Interfaces
Analog / SPI / CAN
Protection
IP67*
Installation Depth
Very Low
Mechanical Options
Detents / Friction Brake
* Protection rating depends on installation and configuration. Product specifications should be confirmed for the individual application.
Application Engineering
How should your H10 be configured?
Tell us about the machine functions, required operator controls, mechanical feel, sensing technology and electrical interface. Comtrium can help configure the H10 around your application.
