8FLP-serien

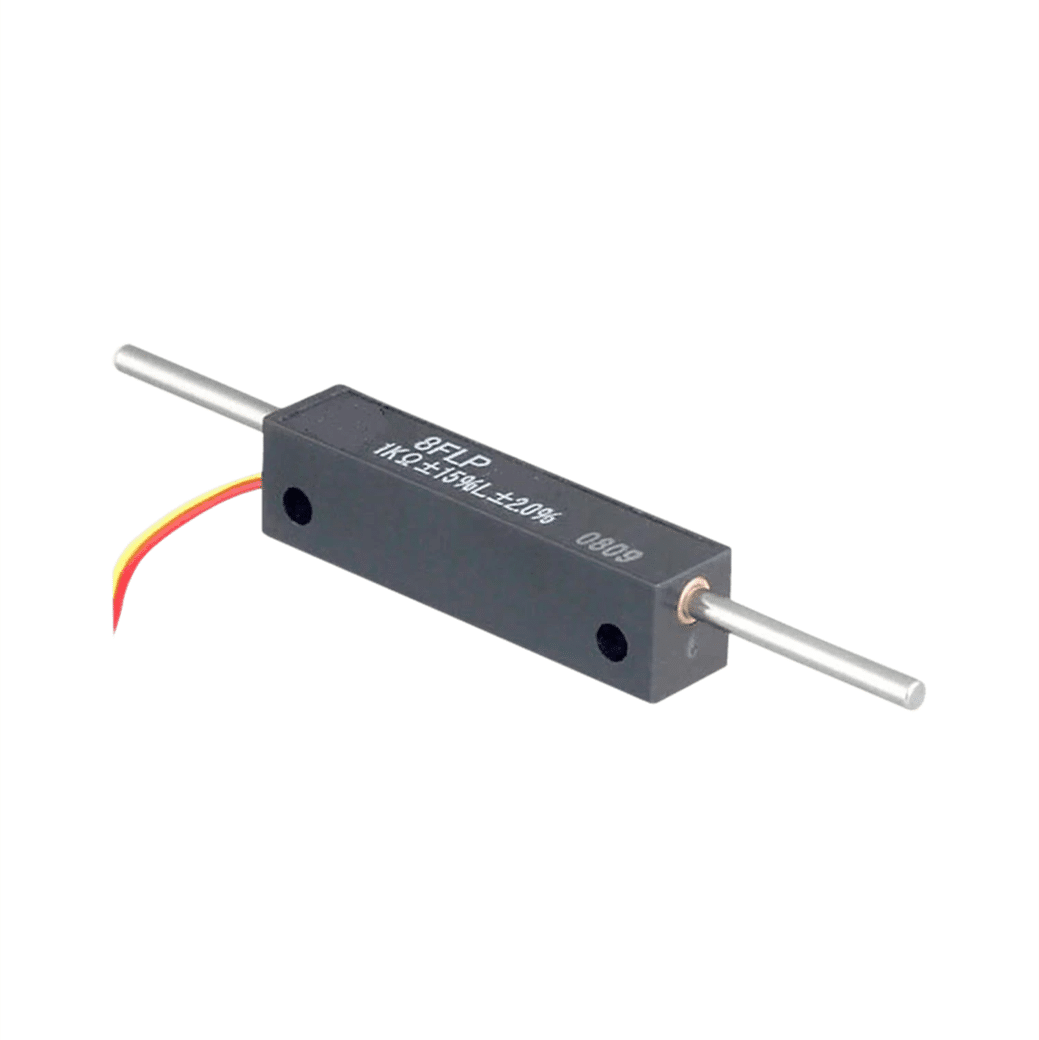

The 8FLP is a miniature sized and low-cost item with leadwire terminals, a front and rear extended shaft/circle holes and a 10mm stroke.
In the 8FLPA series we have the 8FLP10A and 8FLP15A available.
Special Specifications Available
Spring return device incorporated (friction is approx. 3N [300gf], special electrical stroke (8mm, 12mm), special machining on the shaft.
When ordering special shaft length of our linear-motion potentiometer, especially models 30LP, 50LP, 8FLP and 15FLP series as standard version with front and rear shaft extension, please be sure to specify the shaft length exactly when the shaft is completely pressed into the housing.
Example: In case of model 8FLP10A standard version As you see from the above right drawing, please specify the exact Length of L1 and L2 when the shaft is completely pressed into the housing. In case of models with spring return device, the condition of spring returned is as right drawing and please specify the exact length of L1 and L2 when the shaft is completely pressed into the housing.
