OF30

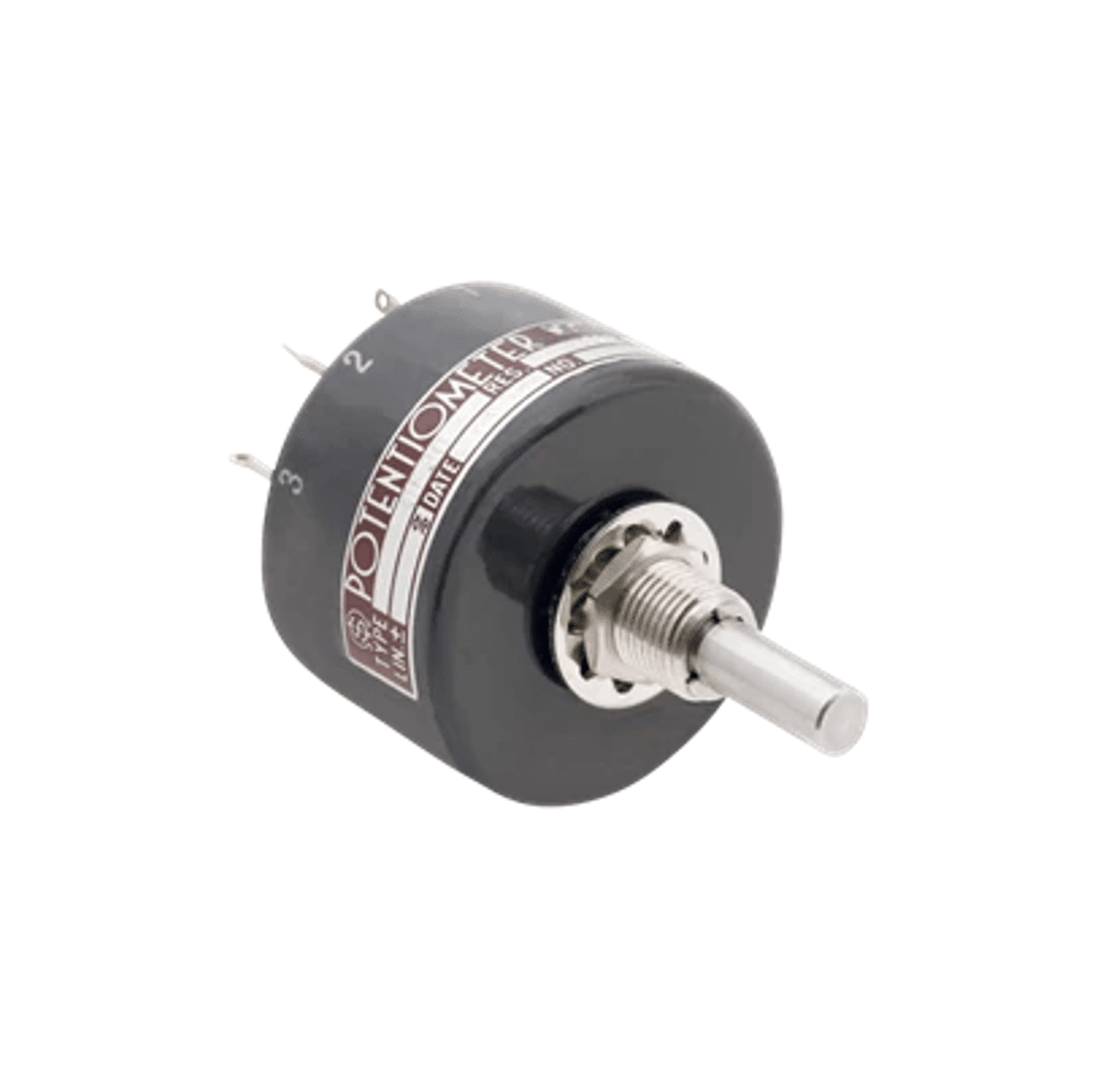

The OF30 is a small-sized single turn and general purpose type potentiometer with an outer diameter of 32mm.
Lower resistance values (50Ω to 200Ω), extra taps (available up to 1 tap), special electrical travel, shaft dia. (ø 3.175mm) · bushing with inch dimensions, special machining on the shaft, with stopper (rotating angel becomes 300º and stopper strength is 0.3N·m [3kgf·cm]).

Key Features OF30

Dimensions (mm) DxL: 32×21

Shaft Dia. (mm): 5

Independent linearity (±%): 2.0 to 0.5

Mechanical travel (+10° 0°): 360°

Electrical travel (±5°): 280°±5°
