HSM14F
Super thin 360 degree sensor.
-
HSM18E/EL
Proven for decades.
-
HSM30/30F
A well proven hall sensor
-

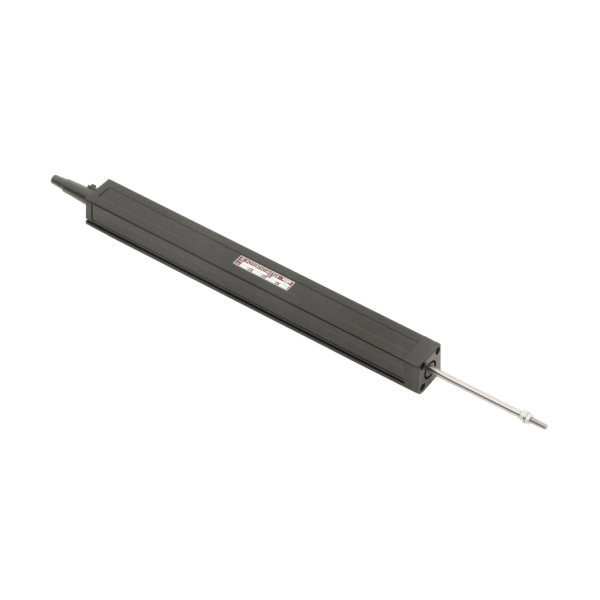

30FLP300A
-
Heavy duty conductive plastic model
-
Measurement range: from 100 mm to 1.000 mm
-
Resistance value: between 1 kΩ and 500 kΩ
-
Linearity tolerance: ±0.5%, ±0.1% or ±0.075%
-
Various body dimensions available
-
-

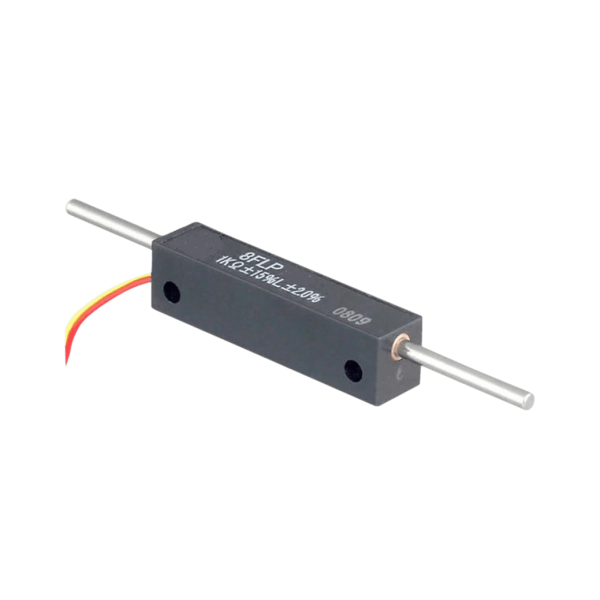

8FLP-serien
The 8FLP is a miniature sized and low-cost item with leadwire terminals, a front and rear extended shaft/circle holes and a 10mm stroke.
In the 8FLPA series we have the 8FLP10A and 8FLP15A available.
-
HSM22M
10-varvig - 3600° hallsensor
-
HSM30
1-turn Contactless Potentiometer Hall Effect IC Type (Bushingmount)
The HSM30 has a robust housing case and is a long-life type sensor and is without a flange. It’s well suited for use in demanding environments due to the standard IP65 protection rating.
Also, check out HSM30F – same sensor with flanges.
-
HSM30F
The HSM30 has a robust housing case and is a long-life type sensor and is without a flange. It’s well suited for use in demanding environments due to the standard IP65 protection rating.
-
KSM22E-5
Low cost inductive sensor
-
HSCB22 – sin/cos
- Single turn, 360 degrees
- Long life – 100 million operations
- Non-linear
- Sin/Cos output
- Hall effect IC
-

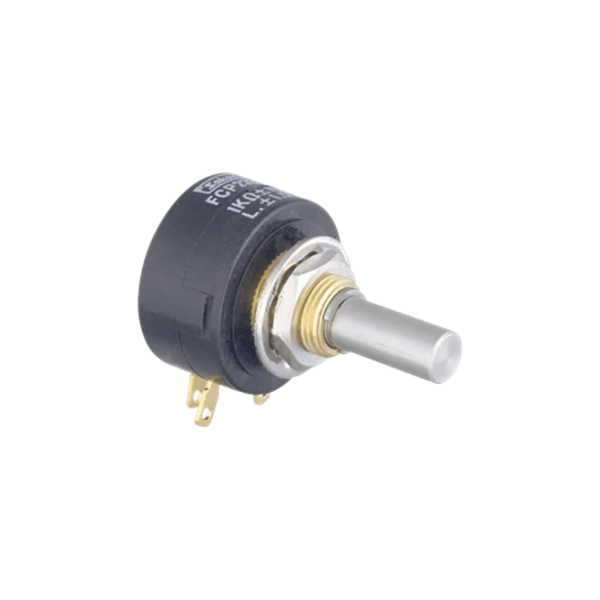

FCP12AC
The FCP12AC is a low-cost 1-turn potentiometer with rear extended pin terminals.
Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.
-
FCP12A
The FCP12A is a servomount type potentiometer with ball bearings and rear extended pin terminals.
Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.
