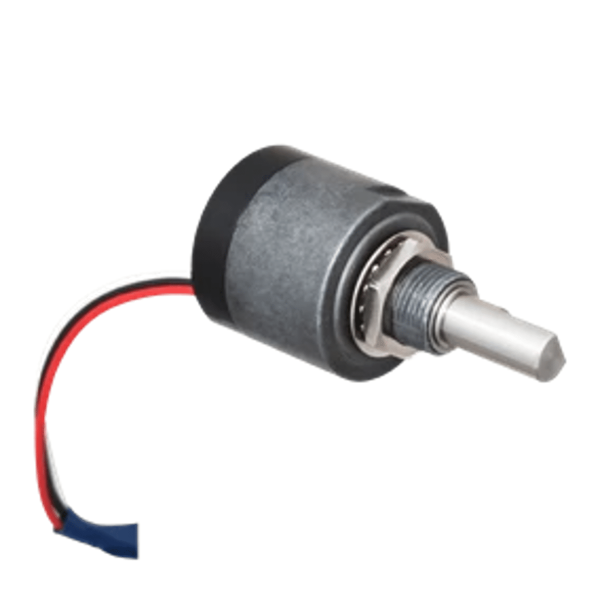

• HSM22M

    10-varvig - 3600° hallsensor

  • 12HPS

    The 12HPS is a small multi-turn servomount type potentiometer with an outer diameter of 13mm. Pin terminals and rear lug terminals are also available in addition to standard lug terminals.
  • 10HP-10

    World’s smallest multi-turn pot.
    10 turns
    Wirewound
    Bushing mount

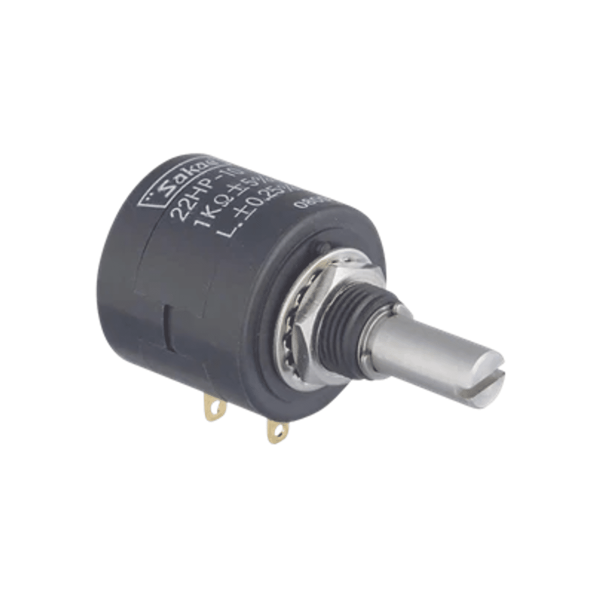

  • 22HP

    The 22HP is our lowest-cost multi-turn potentiometer with an outer diameter of 22mm. This potentiometer has an international patented snapping-in construction.
    Features Multi-turn potentiometer 22HP-5
    • Wirewound
    • Dimensions (mm) DxL: 22×19
    • Standard resistance range (ohm): 100Ω -50kΩ
    • Independent linearity (±%): 0.3 to 0.2
    • Mechanical travel (+10° 0°): 1,800
    • Electrical travel (±5°): 1,800
    Special Specifications Available
    Shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), multi-ganged (available up to 10 gangs), with high torque, special shaft dia. (ø3mm, ø3.175mm, ø4mm, ø5mm), special machining on the shaft, with plastic shaft, metal bushing type (22HPM-n with anti-rotation pin), 1, 2, 3, 4, 6, 7 and 8-turn versions are available (these versions have the same outer dimensions, but general specifications are please request us for details), simple sealed housing, slippingclutch incorporated type (20mN·m~60mN·m), extra taps (available up to 1 tap only for 10-turn model), servomount type (same dimensions as 22HHPS-10).

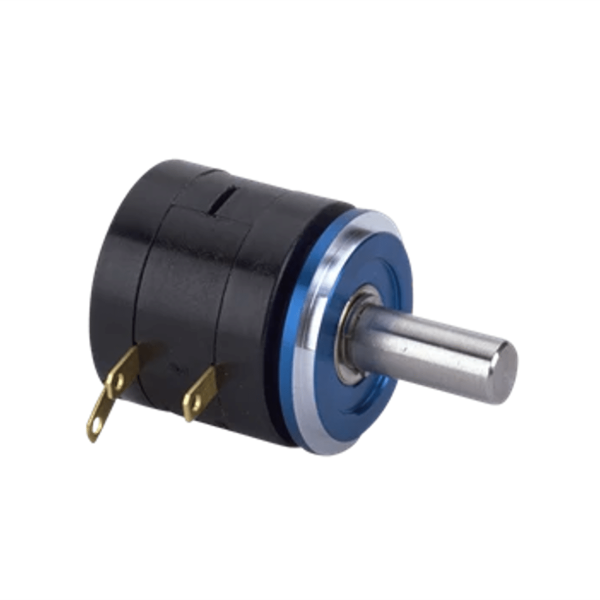

  • 22HHP / 22HHPS

    The 22HHPS is a low-cost, high resolution and long life servomount potentiometer with an outer diameter of 22mm.
    Bushingmount type:
    • 5-turn models: 22HHP-5, 22HHP-5M, 22HHP-5E, 22HHP-5N
    • 10-turn models: 22HHP-10, 22HHP-10M, 22HHP-10E, 22HHP-10N
    Servomount type:
    • 5-turn models: 22HHPS-5
    • 10-turn models: 22HHPS-10
    Shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), 3-turn type, multi-ganged (available up to 10-gangs), with high torque, special shaft dia. (ø3mm, ø3.175mm, ø4mm, ø5mm, ø6.35mm), special machining on the shaft, with plastic shaft, metal bushing type (22HHPM with anti-rotation pin), simple sealed housing, extra taps (available up to 1 tap only for 10turn), slippingclutch incorporated type (20mN·m~60mN·m).
